DC SERVOMOTORS
Rare Earth Magnet Type 30, 60, 100, 200W
FEATURES
- Realization of smaller size and lighter weight by adopting high performance rare earth magnet.
- Tremendous characteristics of servo motors by lessening inertia and by upping power rate and response.
- Dust-proof and water-proof construction
- Wide series ranging from 30to 200 watts
- Heat improvement by incorporating with aluminum die-castings (Only 200 watt type is applicable.)
- Smooth rotation realized by multi-slot design and expansion into a low speed range
- Advancement of noise immunity and realization of unique shrunken motors
- Various optional combinations with tachogenerators, encoders or supporting brakes are possible.
- Realization of ultra-thin encoders with newly designed hybrid IC (Option)
|
![](imagess/dc-servo0101.jpg) |

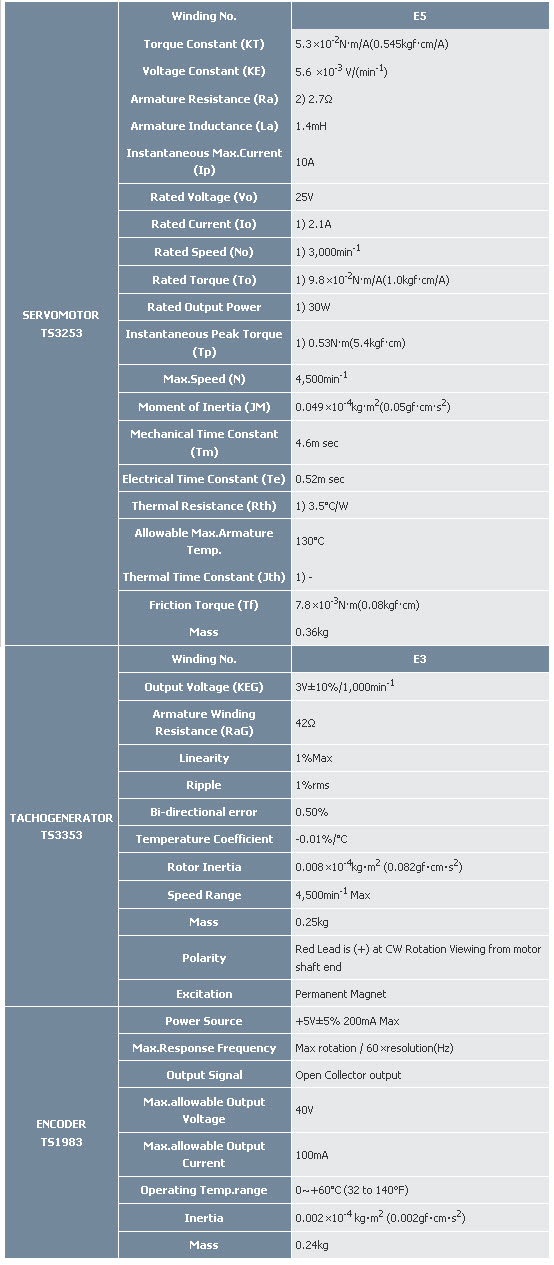

TRESeries 30W SPECIFICATIONS
![](imagess/D2.jpg)
1) All values are measured at ambient temp. 40℃ with the motor attached to aluminum plate of heat sink 200 x 200 x t6 (mm). Other values are measured at ambient temp. 25℃.
2) Brush contact resistance is excluded.(Brush contact resistance is 0.2 ∼ 0.5Ω)

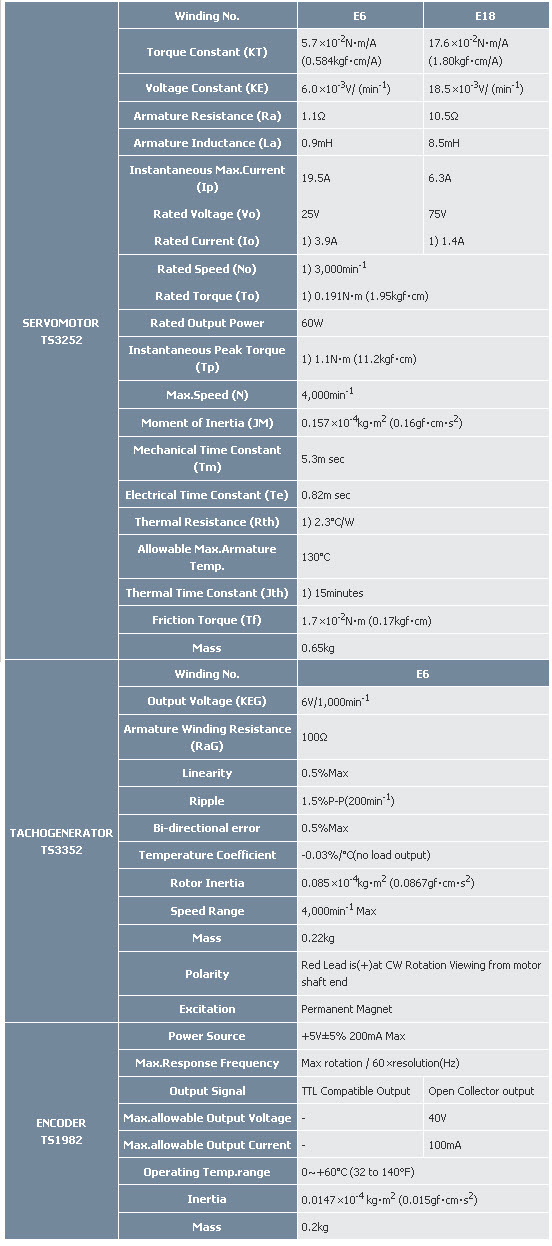

TRESeries 60W SPECIFICATIONS
![](imagess/D3.jpg)
1) All values are measured at ambient temp. 40℃ with the motor attached to aluminum plate of heat sink 150 x 150 x t6 (mm). Other values are measured at ambient temp. 25°C.
2) Brush contact resistance is excluded.(Brush contact resistance is 0.2 ∼ 0.5Ω)

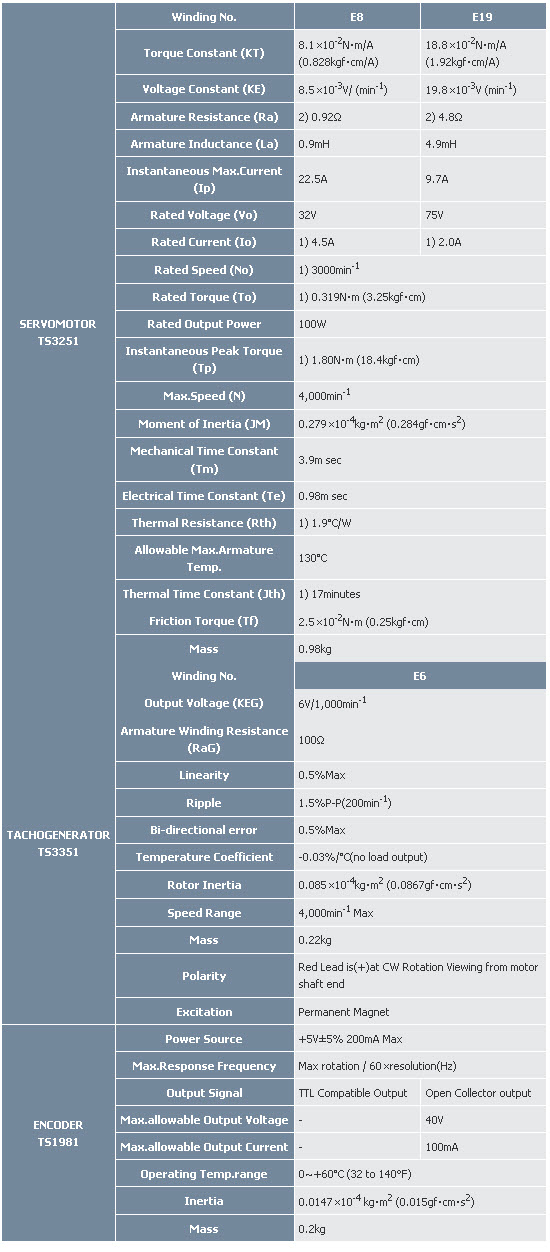

TRESeries 100W SPECIFICATIONS
![](imagess/D4.jpg)
1) All values are measured at ambient temp.
40°C with the motor attached to aluminum plate of heat sink 200 x 200 x t6 (mm).
Other values are measured at ambient temp. 25°C.
2) Brush contact resistance is excluded.(Brush contact resistance is 0.2 ∼ 0.5Ω)

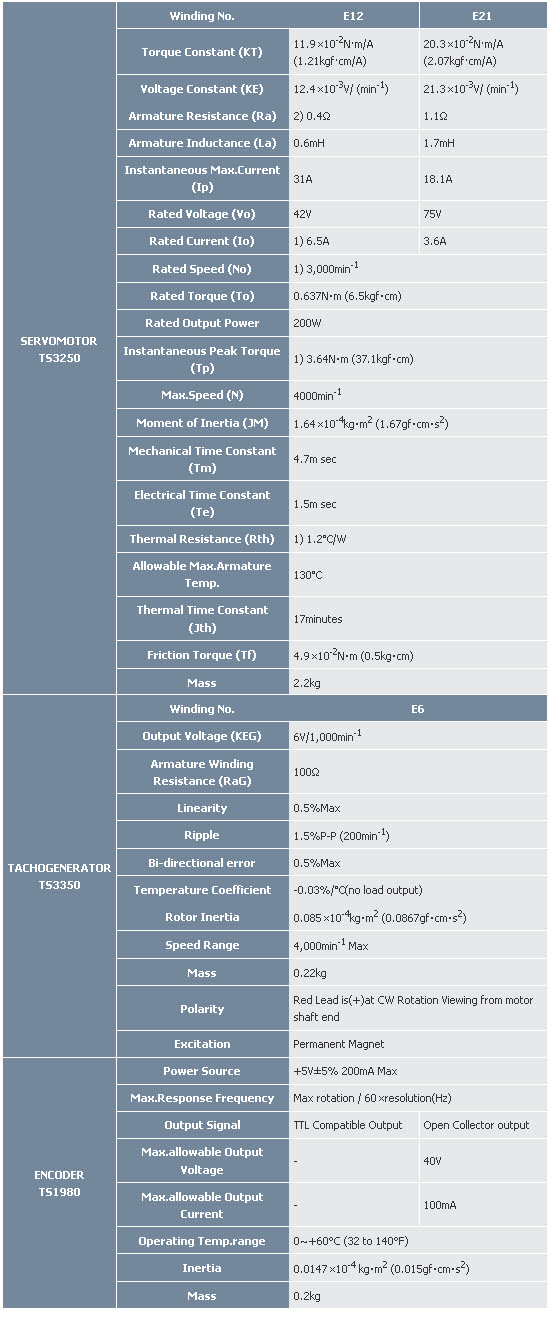

TRESeries 200W SPECIFICATIONS
![](imagess/D5.jpg)
1) All values are measured at ambient temp.
40°C with the motor attached to aluminum plate of heat sink 250 x 250 x t6 (mm). Other values are measured at ambient temp. 25°C.
2) Brush contact resistance is excluded. (Brush contact resistance is 0.2 ∼ 0.5Ω)
![](imagess/D6.jpg)
Brush type 6, 10, 24, 26, 29, 43, 100W
FEATURES
- Small size and high performance
- Highly Reliable Our products are manufactured through highly sophisticated production technology of our own under consistent control.
- Brush type

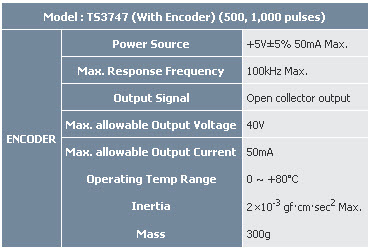

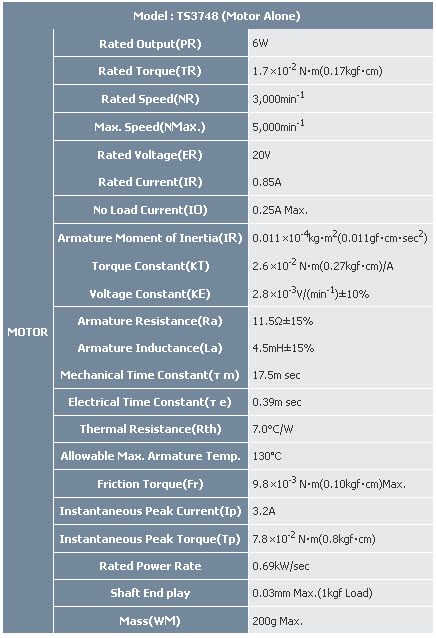

Office Automation Equipment 6W
SPECIFICATIONS
![](imagess/D7.jpg)
![](imagess/D8.jpg)

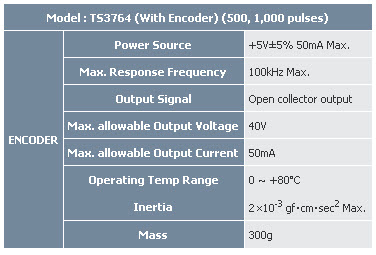

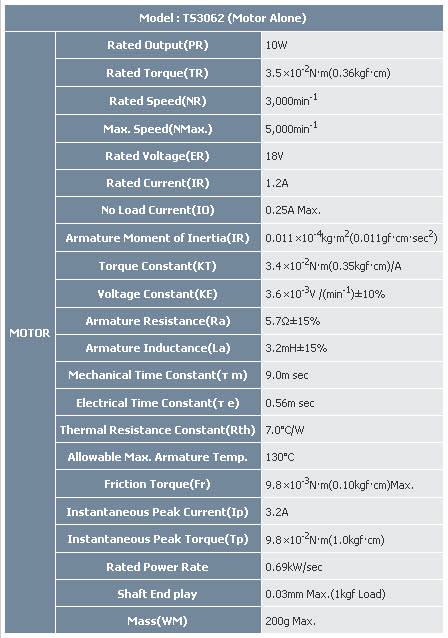

Office Automation Equipment (For Plotter & Printers) 10W
SPECIFICATIONS
![](imagess/D9.jpg)
![](imagess/D10.jpg)

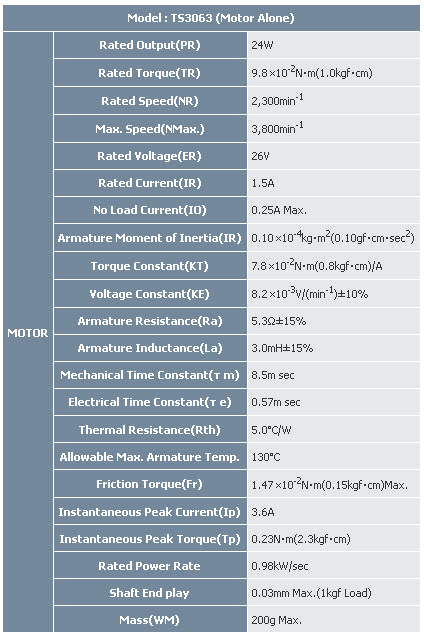

Office Automation Equipment 24W
SPECIFICATIONS
![](imagess/D12.jpg)

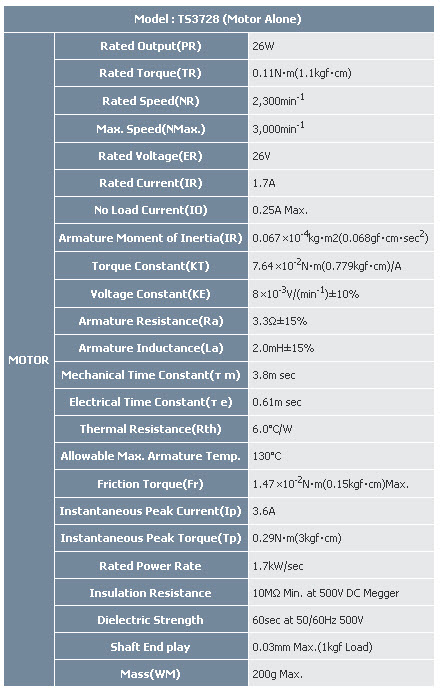

Office Automation Equipment (For Plotters) 26W
SPECIFICATIONS
![](imagess/D13.jpg)
![](imagess/D15.jpg)
Large Printers (For Power Source Breakers)

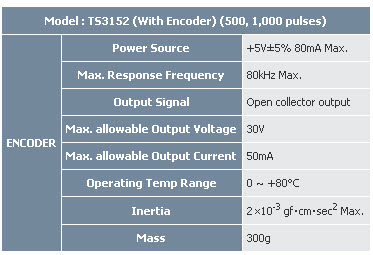

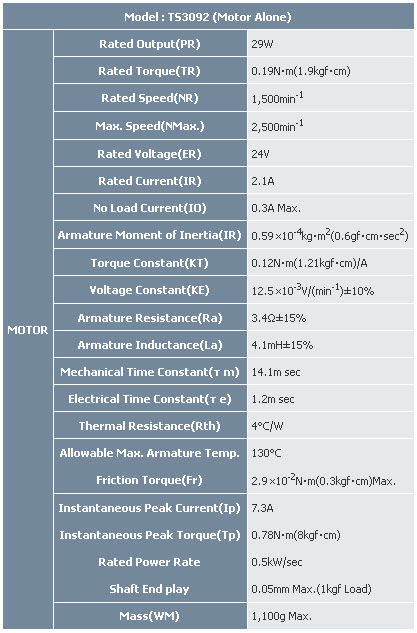

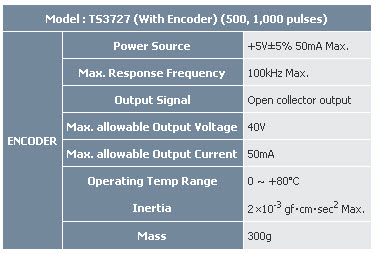

General Industrial Machinery (For Robots) 29W
SPECIFICATIONS
![](imagess/D16.jpg)
![](imagess/D17.jpg)
Large Printers

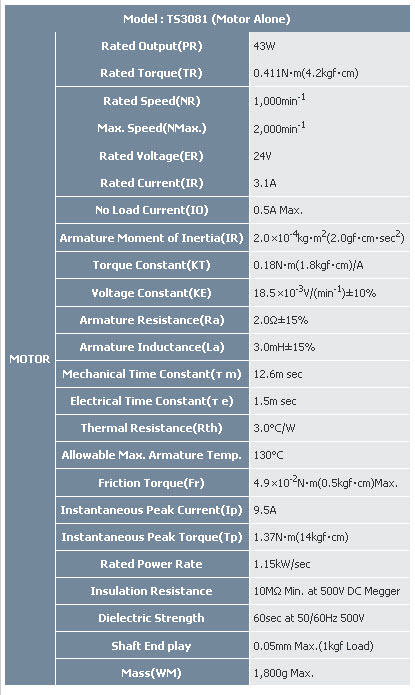

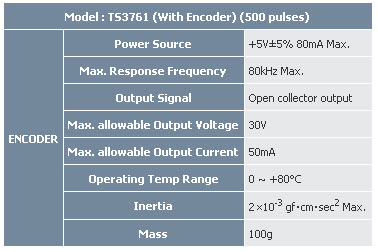

General Industrial Machinery (For Robots) 43W
SPECIFICATIONS
![](imagess/D18.jpg)
![](imagess/D19.jpg)
General Industrial Machinery(For Power Source Breaker)

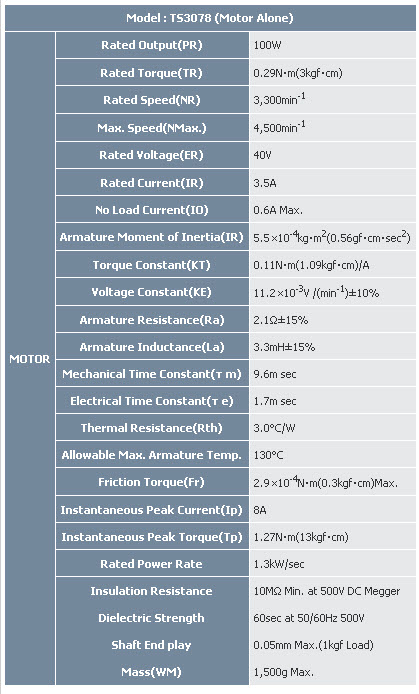

Large Copy Machines 100W
SPECIFICATIONS
![](imagess/D20.jpg)
